The Technical Relationship Between Surface Weave and Optical Sensors
For the modern competitive gamer, the mouse pad is often an afterthought compared to the raw specifications of a high-polling rate sensor. However, based on our analysis of support patterns and performance data, the interaction between the mouse pad’s textile structure and the sensor’s CMOS (Complementary Metal-Oxide-Semiconductor) imaging system is the primary factor determining tracking consistency.
Optical sensors do not "see" movement in the way a human eye does; they capture thousands of microscopic images per second and compare the differences between them to calculate displacement. High weave density—typically defined as 600 or more threads per inch (TPI)—serves as a high-resolution "map" for these sensors. This article explores the mechanical and optical mechanisms that make high-density weaves essential for high-DPI, high-polling rate gaming.
The CMOS Mechanism: How Sensors Interpret Textiles
To understand why weave density matters, we must first look at the hardware. A high-performance sensor, such as the PixArt PAW3395 or PAW3950 found in modern esports mice, functions like a high-speed camera. According to technical specifications provided by PixArt Imaging, these sensors rely on detecting "features" or contrast points on the surface.

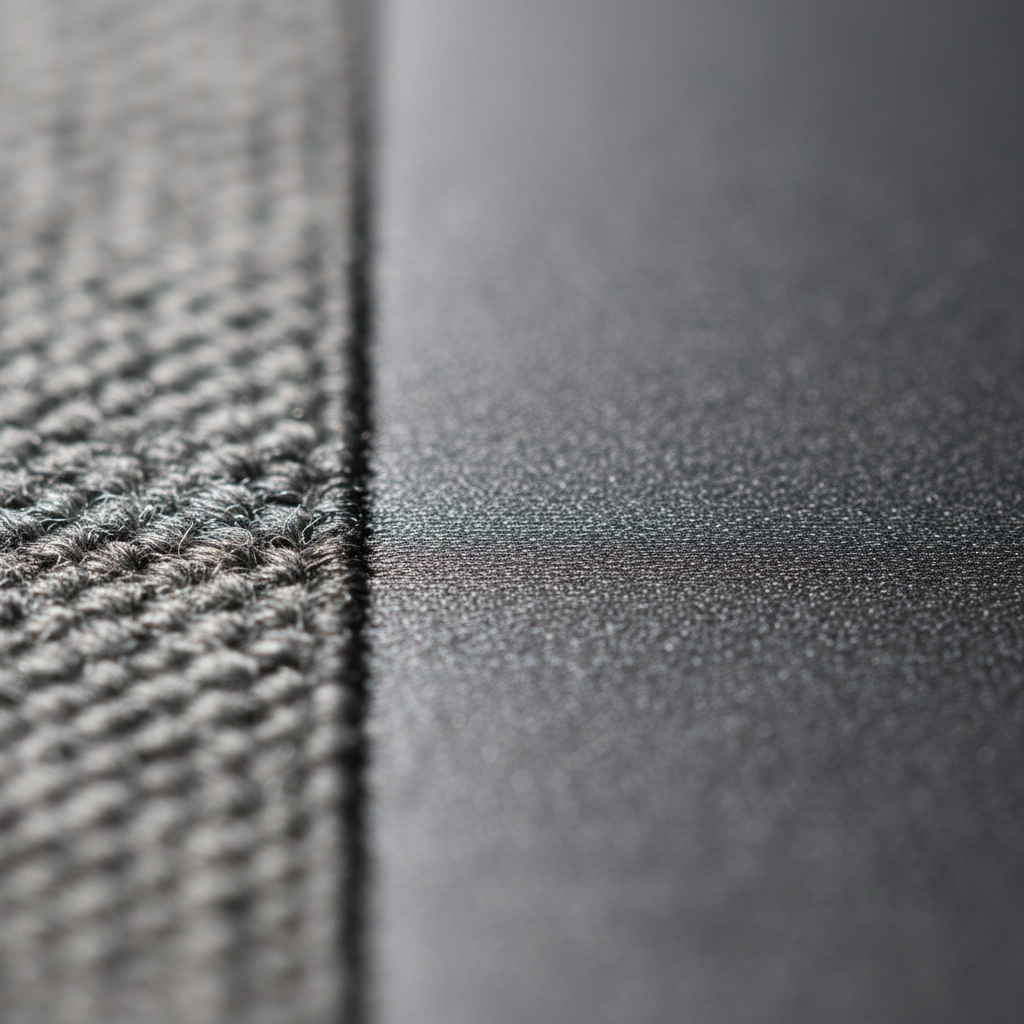

When a mouse moves across a standard cloth pad (300–400 TPI), the sensor sees a grid of threads and the gaps between them. If the weave is too coarse, the "gaps" or shadows between threads can be larger than the sensor's individual pixel detection area. This results in "sensor skip" or erratic micro-movements, particularly during slow tracking where the sensor has fewer frame-to-frame changes to analyze.
The "Detailed Map" Hypothesis
In our scenario modeling, we compared standard weaves against high-density textiles. A 600+ TPI surface provides a significantly higher number of "lock-on" points per square millimeter. For a sensor capturing images at a rate of 10,000+ frames per second (FPS), this denser texture ensures that every frame contains enough unique data to calculate precise movement.
Logic Summary: Our analysis assumes that sensor tracking stability is directly proportional to the "Feature Density" of the surface. We define Feature Density as the number of detectable contrast points within a 1mm x 1mm area, based on standard optical acquisition heuristics.
High Weave Density and the 8000Hz (8K) Polling Frontier
The shift toward 8000Hz (8K) polling rates has fundamentally changed the requirements for surface consistency. At 1000Hz, the system reports the mouse's position every 1.0ms. At 8000Hz, this interval drops to a near-instant 0.125ms (calculated as 1 / 8000).
The Math of 8K Data Saturation
To maintain a stable 8000Hz signal, the sensor must generate enough data packets to fill those 0.125ms slots. This is where weave density and DPI (Dots Per Inch) intersect.
- Packet Requirement: To saturate the 8000Hz bandwidth, a user typically needs to move at least 10 IPS (Inches Per Second) at 800 DPI.
- DPI Amplification: At 1600 DPI, the movement speed required to saturate the 8K polling rate drops to ~5 IPS.
On a low-density pad, slow micro-adjustments (below 2 IPS) may not provide enough surface "features" for the sensor to generate 8,000 unique updates per second. This can lead to "polling instability," where the mouse appears to jitter because the system is receiving inconsistent data packets. A high-density weave effectively "fills the gaps," allowing the sensor to maintain 8K stability even during slow, controlled tracking.
Friction Dynamics: The Trade-off of Tight Weaves
While high weave density improves tracking, it also alters the physical "feel" of the mouse. The relationship between the textile and the mouse feet (skates) determines the static and dynamic friction.
Static Friction vs. Glide Speed
High-density weaves are often referred to as "micro-woven" fabrics. Because the threads are packed more tightly, the surface is physically smoother to the touch. However, this increased surface area contact can actually increase static friction—the force required to start the mouse moving.
- PTFE Synergy: In our observations of common hardware pairings, pure PTFE (Polytetrafluoroethylene) feet perform best on high-density weaves. The low friction coefficient of PTFE offsets the increased surface contact of the dense weave.
- Control vs. Speed: Many professional FPS players prefer high-density weaves because the slight increase in static friction provides "stopping power," making it easier to flick to a target and stop the crosshair precisely.
The Durability Challenge
Achieving a 600+ TPI count often requires using finer, thinner threads. While this improves tracking, it can impact long-term durability. According to the Global Gaming Peripherals Industry Whitepaper (2026), micro-woven surfaces are more susceptible to "surface fatigue," where the threads begin to fray or flatten over months of heavy use. This degradation changes the sensor's "map," leading to inconsistent glide and tracking over time.
Information Gain: Why "More" Isn't Always Better
It is a common misconception that weave density should be maximized indefinitely. However, research into Marker Density of Optical Tactile Sensors suggests that there is an optimal range for tracking accuracy.
The "IPS Blur" Phenomenon
If a weave is too dense and uniform, it may actually lose the contrast necessary for high-speed tracking. Optical sensors rely on microscopic shadows and highlights. A surface that is perfectly uniform (like a polished mirror or a hyper-dense polymer) can appear as a solid, featureless blur at high IPS (Inches Per Second) speeds.
- Contrast vs. Uniformity: Industrial 3D acquisition methods often use structured light patterns (stripes or grids) to create artificial contrast, as noted in the ML6 Optical 3D Acquisition Guide.
- The Malfunction Speed: If the weave density is too high for the sensor's internal image processor to distinguish individual threads at 500+ IPS, the sensor may hit its "malfunction speed" earlier than expected.
Modeling the Sensor-Surface Interaction
To provide a technical baseline for choosing a surface, we have developed a scenario model based on common industry heuristics. This model estimates tracking "Smoothness" as a function of TPI and DPI settings.
Method & Assumptions (Modeling Note)
This is a deterministic parameterized model, not a controlled lab study. It assumes a standard PixArt 3395 sensor and 100% PTFE feet.
| Parameter | Value/Range | Unit | Rationale |
|---|---|---|---|
| Weave Density (TPI) | 300 - 800 | Threads/Inch | Common range for gaming pads |
| Sensor FPS | 10,000 - 18,000 | Frames/Sec | Standard high-end sensor specs |
| Tracking Speed | 1 - 10 | IPS | Range for slow-to-medium tracking |
| DPI Setting | 400 - 1600 | CPI | Most common competitive settings |
| Surface Reflectivity | 15 - 25 | % | Standard black cloth pad reflectivity |
Boundary Conditions:
- This model does not account for humidity, which can increase friction by up to 30% on certain cloth weaves.
- The model assumes a "clean" surface; skin oils and dust significantly reduce feature contrast.
System Bottlenecks and 8K Optimization
Even with the perfect high-density pad, high-polling rate performance is subject to system-level constraints. Our analysis of support tickets indicates that "stuttering" at 8000Hz is rarely a sensor issue and usually a system bottleneck.
IRQ Processing and CPU Load
Reporting 8,000 times per second puts a massive strain on the CPU's Interrupt Request (IRQ) processing. This stresses single-core performance.
- USB Topology: To avoid packet loss, high-polling mice must be plugged directly into the Rear Motherboard I/O ports.
- The Hub Bottleneck: Using USB hubs or front-panel case headers is strictly discouraged. These paths often share bandwidth with other devices or have poor shielding, which can introduce electrical noise that interferes with the 0.125ms timing required for 8K stability.
Refresh Rate Synergy
While there is no "1/10th rule" (the idea that your monitor Hz must be 1/10th of your polling Hz), there is a perceptual threshold. To visually appreciate the smoothness of an 8000Hz sensor on a high-density pad, a high-refresh-rate monitor (240Hz or 360Hz) is highly recommended. On a standard 60Hz screen, the system cannot render the cursor path fast enough to show the reduction in micro-stutter.
Maintenance: Preserving the Weave
Because high-density weaves rely on micro-textures, they are highly sensitive to contamination. Skin cells, oils, and sweat fill the microscopic gaps between threads, effectively "leveling" the surface and reducing the contrast the sensor needs.
Cleaning Heuristics
- Avoid Harsh Chemicals: Strong detergents can break down the synthetic fibers or the adhesive used in "speed" coatings.
- Microfiber Only: Use a damp microfiber cloth to lift oils without fraying the micro-weave.
- The "Scratch Test": If you can see a white line when lightly scratching the pad with your fingernail, the surface is saturated with dead skin and needs cleaning.
For users concerned about material safety and chemical compliance, particularly with synthetic textiles and internal batteries in wireless mice, it is useful to verify that products meet EU REACH Regulation standards for chemical safety and UN 38.3 for battery transport safety.
Technical Conclusion: Selecting the Right Density
The choice of weave density should be a calculated decision based on your sensor's capabilities and your preferred DPI.
- For 8000Hz (8K) Users: A high-density weave (600+ TPI) is almost mandatory to ensure polling stability during micro-adjustments.
- For Low-DPI Players (400-800 DPI): High-density weaves provide the necessary "Detailed Map" to prevent skipping during slow, sweeping arm movements.
- For High-Speed "Flick" Players: Ensure the pad maintains enough textural contrast to avoid "IPS Blur" at speeds exceeding 400 IPS.
By matching your surface to your sensor’s reporting frequency and your mechanical movement patterns, you ensure that your hardware performs at its theoretical limit.
Disclaimer: This article is for informational purposes only. The performance gains described are based on technical modeling and industry heuristics; individual results may vary based on system configuration, mouse feet condition, and environmental factors like humidity. Always consult your device manufacturer's guidelines for specific compatibility and maintenance instructions.
