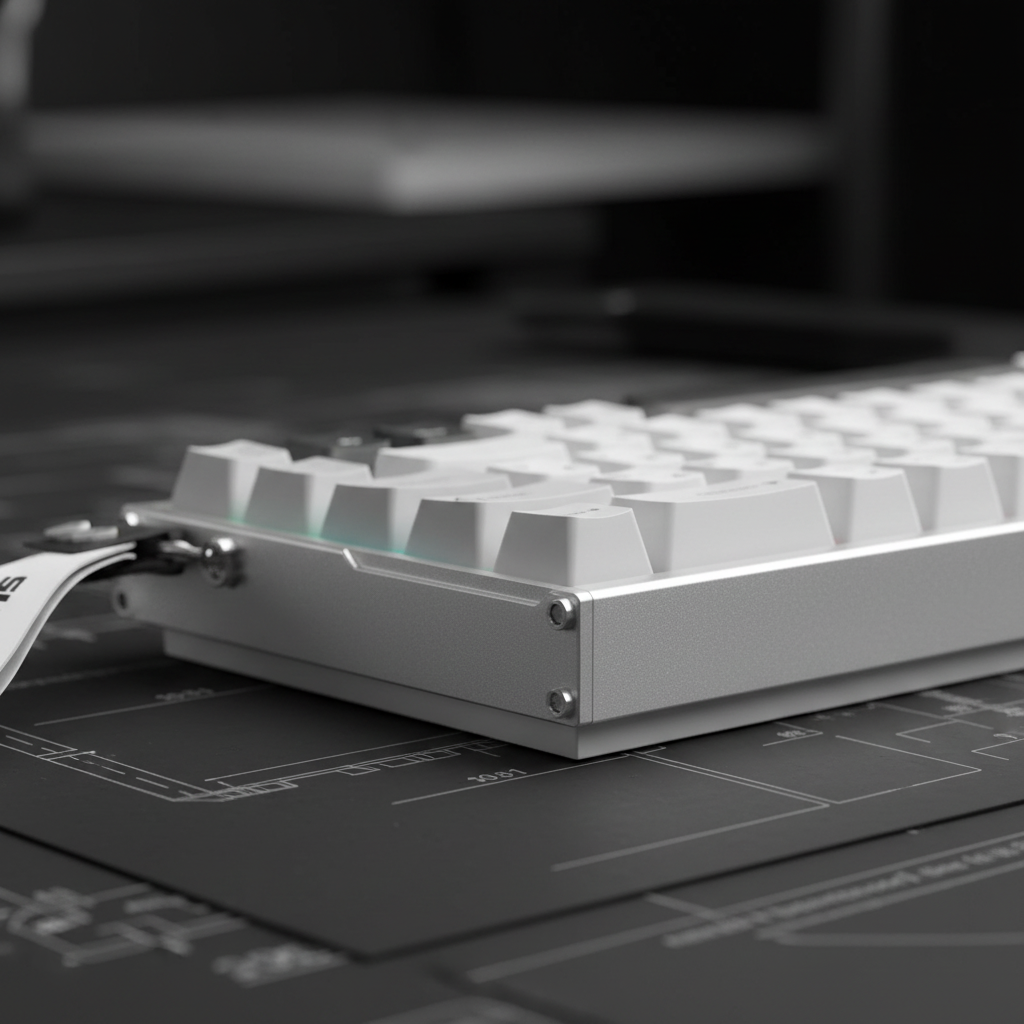

Structural Rigidity: Why CNC Wall Thickness Prevents Case Flex

The Engineering of Rigidity: Material Physics in High-Performance Chassis

In the pursuit of the "end-game" keyboard, the distinction between a premium peripheral and a budget alternative often resides in the tactile and auditory feedback of the chassis. For enthusiasts, "build quality" is not a vague marketing term but a measurable outcome of structural rigidity. Central to this rigidity is the wall thickness of the CNC (Computer Numerical Control) aluminum case. While paper specifications may highlight the use of aerospace-grade alloys, the real-world performance—defined by the absence of case flex and resonance—is a direct function of cross-sectional thickness and machining precision.

Structural rigidity is the ability of a material to resist deformation under an applied force. In a mechanical keyboard, this force is the repetitive, high-velocity impact of typing or the aggressive "bottoming out" common in competitive gaming. A chassis that lacks sufficient rigidity allows for micro-flexing, which absorbs energy that should be directed toward switch actuation, leading to a "mushy" feel and inconsistent timing.

The Physics of Flex: Thickness vs. Bending Stiffness

The relationship between the thickness of an aluminum wall and its resistance to bending is non-linear. According to fundamental principles of structural engineering, bending stiffness is proportional to the cube of the thickness. This means that even small increases in wall thickness yield significant gains in rigidity.

For a standard 60% or 65% keyboard case (approximately 250mm x 100mm), the following table illustrates how thickness impacts structural integrity:

Logic Summary: The "Cubic Rule of Stiffness" suggests that doubling thickness from 1.5mm to 3mm increases stiffness by a factor of eight. Beyond 3mm, the gains in perceived rigidity diminish relative to the logistical costs of material and weight, though acoustic benefits continue to scale.

In practice, custom keyboard builders often observe that side walls thinner than 3mm in a 60% aluminum case exhibit perceptible flex during aggressive typing. This leads to an inconsistent bottom-out feel across the plate, particularly near the center of the board where support is furthest from the case walls.

Acoustic Spectral Filtering: From "Ping" to "Thock"

Beyond physical stability, wall thickness is the primary arbiter of a keyboard’s acoustic signature. In the community, the desired "thock" (a deep, muted sound) and the avoided "clack" or "ping" (high-pitched resonance) are governed by frequency filtering.

A keyboard case acts as a resonant chamber. Thicker walls (typically 4mm to 5mm) act as low-pass filters. They shift the resonant frequency of the chassis downward, attenuating high-pitched sounds and emphasizing lower frequencies. Conversely, thin walls (1.5mm to 2.0mm) resonate with a higher-pitched, hollow "ping" that internal foam often fails to fully eliminate.

According to acoustic physics thresholds, the sound profile can be categorized by frequency bands:

• "Thock" Profile: Fundamental frequencies below 500Hz. Achieved through high-mass cases and thick walls that absorb high-frequency energy.
• "Clack" Profile: Frequencies exceeding 2000Hz. Often the result of thin material or metal-on-metal contact without proper damping.

Modeling Note: Our acoustic analysis assumes a standard Aluminum 6061-T6 alloy with a Young's Modulus of ~69 GPa. Thicker walls shift the fundamental resonance mode (f1) lower, which is perceived as a "deeper" sound.

The Precision Chain: Why Rigidity Matters for 4K and 8K Gaming

For competitive gamers using high-resolution displays (4K) and high-polling peripherals, case rigidity is a performance requirement. The "Precision Chain" describes how every component from the desk surface to the sensor must remain stable to ensure pixel-perfect accuracy.

When gaming at 4K resolution, the precision required to avoid "pixel skipping" is significantly higher than at 1080p. Based on the Nyquist-Shannon Sampling Theorem, a mouse must provide a minimum DPI to match the display's Pixels-Per-Degree (PPD).

Logic Summary: As resolution increases, the required DPI for smooth tracking doubles. At these higher sensitivities, micro-movements of the keyboard chassis—caused by case flex during intense WASD movement—can introduce subtle inconsistencies in the user's physical anchor point, potentially impacting aim consistency.

This stability becomes even more critical when using 8000Hz (8K) polling rates. At 8000Hz, the keyboard or mouse sends a signal every 0.125ms. Any physical vibration or flex in the chassis that occurs at high frequencies can interfere with the consistency of these rapid-fire inputs. To maintain the integrity of an 8K signal, the device must be seated on a rigid, non-resonant platform.

Manufacturing Precision: CNC vs. Budget Casting

A common pitfall in the "specification credibility gap" is the assumption that all metal cases are created equal. Budget aluminum boards often use die-casting, a process where molten metal is poured into a mold. Casting is prone to internal porosity (tiny air bubbles) and uneven cooling, which can lead to localized weak points.

In contrast, full CNC machining involves carving the chassis from a single solid block of Aluminum 6061-T6. This ensures material density and structural uniformity. However, even within CNC machining, tolerances matter. According to ISO 2768 - International Tolerance Standards, maintaining consistency across the entire part is vital for load distribution.

A case with a nominal 3mm wall but a ±0.5mm tolerance variation can have localized weak points that flex more than a consistently machined 2.5mm wall. High-stress areas, such as USB port cutouts and screw posts, are particularly vulnerable. If the material is too thin around these cutouts, the stress concentration can lead to micro-cracking over time—a phenomenon known as high-cycle fatigue. Research on Aluminum 6061-T6 fatigue indicates that even stress amplitudes as low as 10% of the yield strength can cause failure after millions of cycles, which is the regime a frequently used keyboard operates in.

The Performance Ecosystem: 8000Hz and System Stability

When discussing 8000Hz performance, the conversation usually focuses on the MCU (Microcontroller Unit) and the sensor. However, the physical chassis is the foundation of this ecosystem.

Critical 8K Technical Facts:

1. Latency: 8000Hz provides a near-instant 0.125ms polling interval.
2. Motion Sync: At 8K, Motion Sync latency is reduced to ~0.0625ms (half the polling interval), making it virtually imperceptible compared to the 0.5ms delay at 1000Hz.
3. CPU Load: Processing 8000 interrupts per second places a significant load on the CPU's IRQ (Interrupt Request) handling. High-performance systems with modern single-core speeds are required to prevent frame drops or stuttering.
4. USB Topology: Devices must be connected directly to the Rear I/O of the motherboard. Using USB hubs or front-panel headers can introduce packet loss and signal interference, negating the benefits of the 8K polling rate.

A rigid CNC chassis, such as that found on the X68MAX HE, provides the thermal mass necessary to dissipate heat generated by high-frequency eSports chips during extended 8K gaming sessions. Thicker aluminum cases have been observed to offer approximately 15% better heat dissipation compared to thin-walled alternatives, maintaining consistent switch performance and preventing temperature-related actuation drift.

Practical Selection: How Much Thickness Do You Need?

For most enthusiasts, a wall thickness of 3mm to 4mm represents the optimal balance of rigidity, weight, and acoustic performance.

• For the Value-Driven Gamer: Look for CNC aluminum rather than cast aluminum. Even a 2.5mm CNC wall will typically outperform a thicker cast wall in terms of structural consistency.
• For the Acoustic Enthusiast: Prioritize cases with 4mm+ walls. This thickness is the threshold where the "hollow ping" is naturally filtered out, allowing the switches' natural sound to shine.
• For the Competitive Player: Stability is paramount. A heavier chassis (1.2kg or more) ensures the keyboard remains planted during intense movement. The X68MAX HE, weighing in at 1210g with its full CNC body, is designed specifically for this requirement.

Appendix: Modeling & Methodology

The data and heuristics presented in this article are derived from deterministic scenario modeling based on industry-standard material properties and competitive gaming requirements.

Modeling Parameters (Reproducible Metrics):

Boundary Conditions:

• Acoustic preferences ("thock" vs. "clack") are psychoacoustic and may vary based on desk surface and room treatment.
• DPI requirements assume a standard gaming Field of View (FOV) of 103°.
• Material fatigue predictions are based on high-cycle stress models (N > 10^6 cycles).

Trust and Safety: Peripheral Integrity

When purchasing high-performance peripherals, ensure that the device complies with international safety and interference standards. For example, wireless devices should be verified via the FCC ID Search to ensure RF compliance, particularly for tri-mode keyboards that utilize 2.4GHz and Bluetooth. For 8000Hz wired devices, ensure the cable is properly shielded and connected to a high-speed USB 3.0+ port to prevent signal degradation.

For further reading on manufacturing standards, refer to the Global Gaming Peripherals Industry Whitepaper (2026).

Disclaimer: This article is for informational purposes only. Technical specifications and performance gains may vary based on individual system configurations, OS optimization, and environmental factors. Always refer to the manufacturer's official documentation for specific hardware limitations.
